6060 Aluminium T-Slot Profile | High Strength Modular Aluminium Extrusion

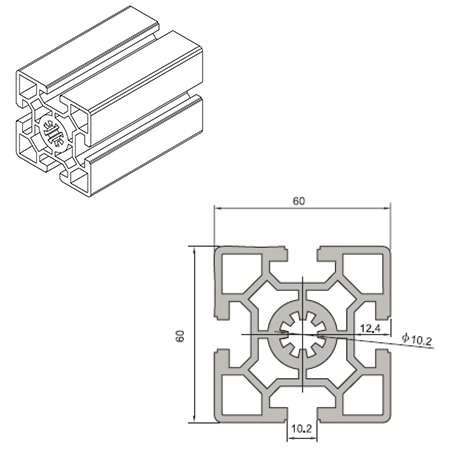

6060 profile’s slot is 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 4 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. The system will be flexible and used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems.
Contact Us for more details of 60 Series T slot profiles
6060 Aluminium T-Slot Profile
Product Overview
The 6060 aluminium T-slot profile is a heavy-duty structural extrusion designed for building machine frames, workstations, conveyor systems, and modular equipment. Made of high-grade aluminium alloy, this profile provides excellent strength, corrosion resistance, and versatility for industrial projects.
Technical Specifications
| Material | Aluminium Alloy T5/T6 |
| Available Grades | 6063, 6061, 6005, 6082, 7075 |
| Surface Treatment | Anodized, Powder Coating, Wooden Grain, PVDF, Sand Blasting |
| Standard Length | 4-6 meters (custom length available) |
| Thickness | 0.7 mm and above |
| Certificates | SGS, ISO 9001:2008 |
Applications
- Automation production lines and conveyor systems
- Machine frames, safety enclosures, and guarding systems
- Assembly workstations and modular furniture
- Exhibition stands and industrial shelving
- Window and door framing applications
Key Advantages
- High Strength: Suitable for heavy-duty structural frames
- Corrosion Resistant: Durable finishes including anodizing and powder coating
- Customizable: Available in custom sizes, cuts, and surface treatments
- Easy Assembly: T-slot design simplifies modular construction
Manufacturing Process
Each 6060 aluminium extrusion is produced with advanced extrusion technology. The process includes billet casting, extrusion, aging, anodizing or powder coating, and precision cutting. Our strict quality control ensures high dimensional accuracy and a smooth surface finish.
Factory & Quality Assurance
Our factory is equipped with state-of-the-art extrusion presses and surface treatment lines, enabling stable quality and large-volume production capacity.
Quality Control Measures
- Hardness & mechanical strength testing
- Anodizing thickness and coating adhesion inspection
- Dimensional accuracy and surface quality check
- Protective packaging and final inspection before shipment
Packing & Shipping
- Each profile is wrapped with protective film
- Outer packaging options: plastic, carton, or wooden pallet
- Safe container loading for international export
Why Choose Us
- Certified Quality: SGS, ISO 9001, ASTM compliance
- OEM/ODM Service: Custom extrusion and machining available
- Global Export: Serving customers in Europe, Asia, Africa, and South America
- Engineering Support: Technical drawings, CAD support, and after-sales service
Request a Quote
Send us your DWG/STEP drawings, preferred alloy, and surface finish requirements. We will provide professional advice, free samples, and competitive prices.
